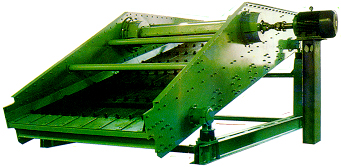

USK circular vibration screens
USK circular vibration screens
USK series circular vibration screens are mainly used in coal , metallurgy , mine, power station, water conservancy project, building materials industry, light industry and chemical industry etc.. They are ideal machines for the classification of bulk materials, such as coal, minerals and coke etc..
1. Absorbing springs have two kinds, metal springs and rubber springs. (please point when order)
2. Motor should be set whether on the left or right. (please point when order)
3. Anchor bolts should be prepared by user himself.
strong vibrating intensity, high efficiency, high capacity, vibrator on the laterla plate, equal force, light weight, eccentric vibrator, adjustable amplitude, modular design, limb versatile, rubber spring, skf Sweden bearing.
|
model
|
Screen cloth
|
charging grain
size(mm)
|
Capacity(t/h)
|
Vibration
frequency(min
|
Double amplitudes(mm)
|
Motor
|
each point sustain
|
Total weight(kg)
|
||||||
|
No.of layer
|
Area(㎡)
|
Slope(o)
|
Opening size(mm)
|
Construction
|
Model
|
Power(kw)
|
Working
|
Start or stop
|
||||||
|
USK1.40×3.00
|
1
|
4.2
|
15
|
3-100
|
punched polyurethane
|
《200
|
18-375
|
970
|
7-10
|
Y160M-6
|
7.5
|
±800
|
±6400
|
3612
|
|
USK1.80×4.50
|
1
|
6
|
21-438
|
970
|
Y180L-6
|
15
|
±1000
|
±8000
|
4664
|
|||||
|
USK2.00×5.25
|
1
|
8.1
|
23-479
|
970
|
Y180L-6
|
15
|
±1200
|
±9600
|
5426
|
|||||
|
USK2.40×4.50
|
1
|
10.5
|
26-542
|
970
|
Y200L-6
|
18.5
|
±1200
|
±9600
|
6232
|
|||||
|
USK1.40×3.00
|
1
|
10.8
|
《200
|
31-646
|
970
|
Y200L-6
|
22
|
±1800
|
±9600
|
7000
|
||||
|
USK2.40×6.00
|
1
|
14.4
|
《200
|
31-646
|
970
|
Y225M-6
|
30
|
±1800
|
±14400
|
8490
|
||||
|
USK3.00×6.00
|
1
|
18
|
《200
|
39-813
|
980
|
Y225M-6
|
30
|
±2400
|
±19200
|
10510
|
||||
|
USK3.60×6.00
|
1
|
21.6
|
《200
|
47-976
|
980
|
Y250M-6
|
37
|
±4000
|
±32000
|
14900
|
||||
|
2USK1.40×3.00
|
2
|
4.2
|
《200
|
18-375
|
970
|
Y180L-6
|
15
|
±1200
|
±9600
|
5500
|
||||
|
2USK1.60×3.75
|
2
|
6
|
《200
|
21-438
|
970
|
Y200L-6
|
18.5
|
±1600
|
±12800
|
7000
|
||||
|
2USK1.80×4.50
|
2
|
8.1
|
《200
|
23-479
|
970
|
Y200L-6
|
22
|
±2000
|
±16000
|
8300
|
||||
|
2USK2.00×5.25
|
2
|
10.5
|
《200
|
26-542
|
980
|
Y225M-6
|
30
|
±2400
|
±19200
|
9800
|
||||
|
2USK2.40×5.25
|
2
|
12.6
|
《200
|
31-646
|
980
|
Y225M-6
|
30
|
±3200
|
±25600
|
10500
|
||||
|
2USK2.40×6.00
|
2
|
14.4
|
《200
|
31-646
|
980
|
Y225M-6
|
30
|
±3200
|
±25600
|
11210
|
||||
|
2USK3.00×6.00
|
2
|
18
|
《200
|
31-646
|
980
|
Y250M-6
|
37
|
±4400
|
±35200
|
15800
|
||||
2USK3.00X6.00 represent below,
2 means 2 decks
U means eccentricity
S means screen
K means circular movement
3.00 means screen mesh / layer width m
6.00 means screen mesh / layer length m
