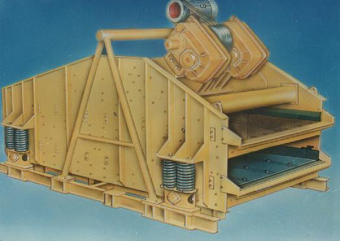

ZKX series straight-line vibrating screen
Uses and features
ZKX series vibration screens work on straight- line motion There are 24 specifications for this series. The vibration screens
are mainly used for coal dressing, ore dressing, generate electricity, sugar
screen industry, and
salt screen industry etc and suitable for dewatering, demedium and demud as well as dry and wet
classification to medium and fine materials. The vibration screens have advanced construction, small, noise
and are sturdy and durable, easy to maintain.
Notice to selection
1. The screen cloth are of two kinds: single deck and double deck.
2. Screen cloth structure can be stripped and seamed or braided. if you choose punched
or rubber deck, we can design it according to the requirements .
3. All the foundation bolts are dia. 20, users should provide it themselves .
4. Feeding box is selected part, if user need, should note in the contract.
5. We undertake to do the design which meets the user's specific
requirements, give some help in model selection, technical consultation, and provide spare
parts etc.
|
model |
screen cloth |
charging grain size
(mm) |
capacity
(t/h) |
Vibration frequency
(min-1)
|
Double amplitude(mm)
|
motor |
Outline size (mm)L * W
* H |
TotalWeight
(kg) |
| no.
of deck |
area
(m2) |
slope
(Ο) |
opening size
(mm) |
Construction |
model
|
power
(kw) |
rated voltage
(V) |
| ZKX936
|
1
|
3
|
0
|
0.5-13
|
striped and
seamed |
0-100
|
20-35
|
890
|
8.5-11
|
Y132M-4
|
7.5
|
380 (660)
|
3936*1628*2049 |
4998
|
| 2ZKX936
|
2
|
3
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
20-35
|
890
|
8.5-11
|
Y132M-4
|
7.5
|
380 (660)
|
3936*1628*2597 |
5486
|
| ZKX1236
|
1
|
4
|
0
|
0.5-13
|
striped and
seamed |
0-100
|
30-50
|
890
|
8.5-11
|
Y132M-4
|
7.5
|
380 (660)
|
3936*1933*1930 |
4843
|
| 2 ZKX1236
|
2
|
4
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
30-50
|
890
|
8.5-11
|
Y132M-4
|
7.5
|
380 (660)
|
3936*1933*2510 |
5825
|
| ZKX1248
|
1
|
5.8
|
0
|
0.5-13
|
striped and
seamed |
≤300
|
33-53
|
890
|
8.5-11
|
Y132M-4
|
7.5
|
380 (660)
|
5143*1933*2057 |
5580
|
| 2 ZKX1248
|
2
|
5.8
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
33-53
|
890
|
8.5-11
|
Y160M-4
|
11
|
380 (660)
|
5143*1933*2600 |
7286
|
| ZKX1536
|
1
|
5.4
|
0
|
0.5-13
|
striped and
seamed |
≤300
|
35-55
|
890
|
8.5-11
|
Y132M-4
|
7.5
|
380 (660)
|
3936*2238*1917 |
5307
|
| 2 ZKX1536
|
2
|
5.4
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
35-55
|
890
|
8.5-11
|
Y160M-4
|
11
|
380 (660)
|
3936*2238*2609 |
7215
|
| 2 ZKX1542
|
2
|
6
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
40-55
|
890
|
8.5-14.5
|
Y160M-4
|
11
|
380 (660)
|
4546*2238*2617 |
7070
|
| ZKX1548
|
1
|
7
|
0
|
0.5-13
|
striped and
seamed |
≤300
|
42-70
|
890
|
8.5-14.5
|
Y160M-4
|
11
|
380 (660)
|
5156*2238*2089 |
6611
|
| 2 ZKX1548
|
2
|
7
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
42-70
|
890
|
8.5-14.5
|
Y160M-4
|
11
|
380 (660)
|
5156*2238*2611 |
8026
|
| ZKX1836
|
1
|
6.5
|
0
|
0.5-13
|
striped and
seamed |
≤300
|
45-85
|
890
|
8.5-14.5
|
Y132M-4
|
7.5
|
380 (660)
|
3936*2543*1942 |
5715
|
| 2ZKX1836
|
2
|
6.5
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
45-85
|
890
|
8.5-14.5
|
Y160M-4
|
11
|
380 (660)
|
3936*2543*2634 |
7463
|
| 2 ZKX1842
|
2
|
7.6
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
50-90
|
890
|
8.5-14.5
|
Y160M-4
|
11
|
380 (660)
|
4546*2543*2634 |
8816
|
| ZKX1848
|
1
|
8.5
|
0
|
0.5-13
|
striped and
seamed |
0-100
|
60-100
|
890
|
8.5-11
|
Y160M-4
|
11
|
380 (660)
|
5156*2543*2137 |
6919
|
| 2 ZKX1848
|
2
|
8.5
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
0-150
|
60-100
|
890
|
10
|
Y160L-4
|
15
|
380 (660)
|
5156*2543*2668 |
10074
|
| ZKX2148
|
1
|
10
|
0
|
0.5-13
|
striped and
seamed |
0-100
|
70-110
|
890
|
9-11
|
Y160M-4
|
11
|
380 (660)
|
5156*2848*2174 |
8738
|
| 2 ZKX2148
|
2
|
10
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
0-150
|
70-110
|
890
|
10
|
Y180L-4
|
22
|
380 (660)
|
5168*2848*3033 |
14085
|
| 2 ZKX2160
|
2
|
13
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
90-150
|
890
|
8-11
|
Y200L-4
|
30
|
380 (660)
|
6388*2848*3222 |
13788
|
| ZKX2160
|
1
|
13
|
0
|
0.5-13
|
striped and
seamed |
≤300
|
90-150
|
890
|
8-11
|
Y180L-4
|
22
|
380 (660)
|
6388*2848*2478 |
10439
|
| ZKX2448
|
1
|
12
|
0
|
0.5-13
|
striped and
seamed |
≤300
|
80-125
|
890
|
8.5-14.5
|
Y160L-4
|
15
|
380 (660)
|
5193*3153*2335 |
9228
|
| 2 ZKX2448
|
2
|
12
|
0
|
13-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
80-120
|
890
|
8.5-14.5
|
Y180L-4
|
22
|
380 (660)
|
5168*3153*3033 |
13755
|
| ZKX2460
|
1
|
14
|
0
|
0.5-13
|
striped and
seamed |
0-100
|
95-170
|
890
|
8.5-11
|
Y180L-4
|
22
|
380 (660)
|
6376*3153*2386 |
13330
|
| 2 ZKX2460
|
2
|
14
|
0
|
3-80
0.5-13 |
Top braided
Bottom stripped and seamed
|
≤300
|
95-170
|
890
|
9-14.5
|
Y200L-4
|
30
|
380 (660)
|
6388*3153*3033 |
15246
|
2 zkx2460 below,
2 means 2 decks
Z means straight line movement
K means block eccentric
X means case type vibrator
24 means screen width dm
60 means screen length dm
