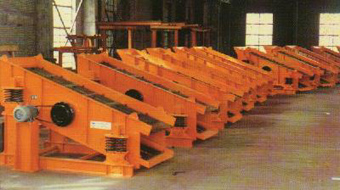

YA serious circular vibrating screens

YA series vibrating screens work on circular motion. The vibrating screens are mainly used in coal dressing, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry etc They are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc There are 40 specifications for YA series, of which the heavy duty type is for the classification of large size materials, while the Light duty type is for the middle and small size materials


1.There are two types of screening machines: heavy duty type and light-duty type.

2. The screen surface are two kinds: single layered and double layered

3. Screen mesh structure can be braided screen mesh, punched screen deck (noted in the contract)

4. The standard specifications of screen diameter are: punched screen deck--13 to 200 mm, braided screen mesh 3 to 80 mm.

5 The electric motor can be mounted either on the left or on the right (noted  in the contract).

6. Feeding box is selected part, if user need it we may provide it.

7. We undertake to do the design which meets the user's specific requirements, give some help in model selection, technical consultation, and provide spare parts etc.

2YAHXXXX represent:

2 means 2 decks

Y means circular movement

A means shaft eccentric

H means heavy type

XX means screen mesh / layer width dm

XX means screen mesh / layer length dm
