Environmental Characters of THR01 |
1.It can be used till 2040 in China and developing countries, it is the alternative

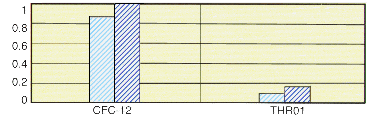

replace to CFC-12. You can find from the charts that the two environmental targets are
good.
REFRIGERANT |
ODP |
GWP |
CFC-12 |
0.9 |
8500 |
THR-01 |
0.022 |
815 |
2.Safe Characters of THR01
It is non toxicity owing to a mixture of two non toxicity matter, it is nonflammable.
Its safe characters were accepted by U.S. EPA and was placed on the "SNAP
Program" list.
3.Thermal Performance of THR01

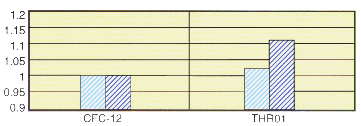

The following charts show themal performance contrast of THR01 and CFC-12 under
refrigerator terms.
REFRIGERANT |
COP |
CAPASITY |
CFC-12 |
1.00 |
1.00 |
THR01 |
1.02 |
1.11 |
You can find from the charts that the THR01 can save energy with better refrigeration
effect than CFC-12, and can use the compressor of former system.
National Household Electric Appliance Quality Supervision Test Center, Product Quality
Supervision Test Office of Shenyang, Snow Flake Electric Appliance and AUCAM Group General
Co. all examined the refrigerator which used THR01, the result suit to the national
standard about thermal performance of refrigerator which used it. The lab of Beijing
Embraco Snowflake Compressor Co, made an aging test for compressor used it, the result
shows that it is up to standard and is reliable in using it.
Several hundred thousands sets of refrigerators using it had been manufactured, all of
them had the "Environmental Remark" of China.
4. Drop-in Effect
Research Institute of China Petroleum Processing tested the miscibility of
it and
different kinds of oil, proved that THR01 was miscible with the mineral oil of CFC-12
system. THR01 and material of CFC-12 system were compatible too after the examination of
material compatibility according the international standard.
THR01 can be drop-in, no need to change the major parts and the former production line.
|
